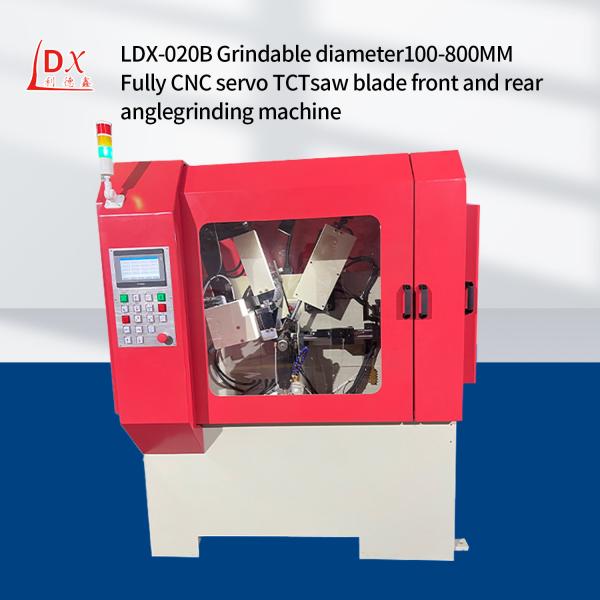

LDX-020B Wholesale TCT Saw Blade Automatic Sharpening Machine

Name: LDX020B Wholesale TCT Saw Blade Automatic Sharpening Machine
Brand: Lidexin
Price: 1 USD

LDX-020B Wholesale TCT Saw Blade Automatic Sharpening Machine Manufactures

Brand Name : Lidexin

Model Number : LDX-020（B）

Certification : CU,ISO

Place of Origin : Foshan, Guangdong, China

MOQ : 1 unit

Price : Western Union

Payment Terms : T/T, Western Union

Supply Ability : 100pcs/mon

Delivery Time : 10-15 work days

Packaging Details : Mechanical size (length X width X height): 1500X1300X1800mm

Saw blade aperture : ￠ 10-220mm

Saw blade thickness (steel plate) : 1-8mm

Pitch : 7-100mm

Left and right inclination of the tooth : tooth top / tooth surface 45 degrees

Processing saw blade diameter range : ¢100-800mm

Tooth surface angle : 5 degrees ~ +30 degrees

Contact Now

LDX-020B Wholesale TCT saw blade automatic sharpening machine

Analysis of the reasons for reducing the cutting ability of circular saw blades:

1,Clamping method and sawing technology are unreasonable;

2,The operator is not responsible for the work, failing to check or maintain according to relevant regulations;

3,The quality of circular saw blade is not stable, the material specification is not uniform or the material is different.

4,The cutting equipment is not coordinated with the saw blade, the vibration is too large or aging, resulting in unstable performance;

5,The position of the cooling water is not correct or the lifting is not in place;

Technical Parameters:

Processing saw blade diameter range: ¢100-800mm

Saw blade aperture: ¢10-220mm

Saw blade thickness (steel plate): 1-7mm

Pitch: 7-100mm

Tooth surface angle: 5 degrees ~ +30 degrees

Tip back angle: 6-45 degrees

Left and right inclination of the tooth: tooth top / tooth surface 45 degrees

Sharpening stroke range: up to 25mm (adjustable) teeth / minute

Sharpening speed: 0.5-6mm/s

Working speed: maximum 20 teeth / minute

Grinding wheel size (outer diameter x hole): (¢125mmx¢32mmX1mm)

Negative chamfer grinding: -27 degrees

Grinding head can rotate angle: 90 degrees and 180 degrees

Grinding wheel line speed: 26m / s

Coolant pump flow: 501/min

Cooling tank volume: 85L

Total power: 1.85 kW

Voltage: three-phase 380v

Mechanical weight: 710KG

Mechanical size (length X width X height): 1500X1300X1800mm

Technical features:

This machine is designed in reference to the features of domestic and foreign similar types, which absorbs and analyzes the advantages of the same type and improves the functions to some extent at the same time.

1. Preset many groups of tooth types and one-key multifunctional operation.

2. Trapezoid flat teeth can be finished at a time, features CNC grinding and arbitrary tooth types, and can improve the efficiency by 3 times; due to the adoption of improved tooth extraction operation, the accuracy is improved, and the service life is prolonged.

LDX-020B Wholesale TCT Saw Blade Automatic Sharpening Machine

Product Tags:

TCT Saw Blade Automatic Sharpening Machine

45 Degree Inclination Automatic Sharpening Machine
